1171BSB Tug - ASD For Charter
- FROM DIRECT OWNERS -
275 BHP driven by hydraulic motor
Propulsion N.2 Azimuthal Thruster LIPS TYPE cs 500-250/MN with cpp
Pull 55 T
Consumption 302 kg/hr
|Vessel type:||1171BSB Tug - ASD For Charter|
|Class Society:||RINA c Tug FIFI|
|Class Notation:||Unrest. Navig.|
|No. of engines:||2|
|Engine model:||MaK type8M 20 AK|
|Cruising Speed:||13 Knots|
|Length over all:||30m|

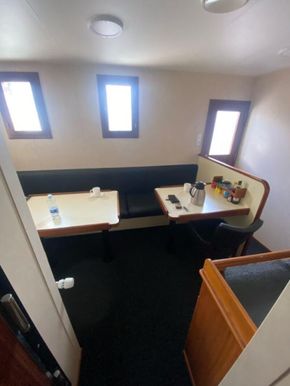

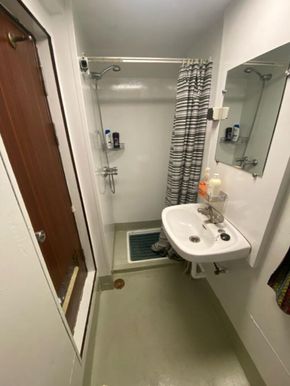

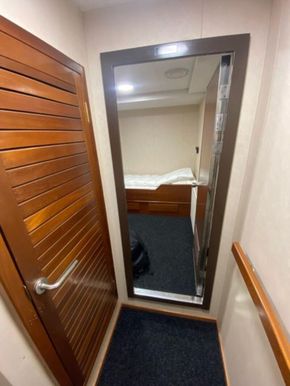

Officers 2 in single cabins with toilets/showers
Crew 4 in single cabins
Vessel fully airconditioned for hot and cold climates
Built (year and place) 1997,SPAIN
Hull material Steel
Length Overall (m) 30.00 m
Breadth (m) 9.85 m
Depth (m) 5.40 m
Draft (m) 4.40 m
NT (tons) 108 tons
GT (tons) 360 tons
WINDLASS/AFT-FORW TOWING WINCH
1xHydraulic driven windlass/forward towing winch for lifting both anchors at the same time.
Towing rope drum capacity 100m rope 80mm dia.
Static pull 80 t. pull, free speed 80/1

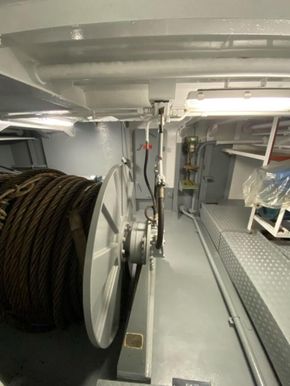

2x Aft. winches:
1x with 700m wire-48mm dia
1x with 100m rope-80mm dia
Winch operations controlled from wheelhouse/local
Spare wire on drum in store 700m of 48mm dia
Towing pins: Canadian type
FERRI REF.50-1513-50T SWL
Able to accommodate 3 containers and other deck cargo, length 10 mt breath 8,8m. Being open stern can also accommodate pipes more than 10m.
Equipped with stern roller able to speed up to 10/12 t.
The vessel is real multipurpose powerful tug, very maneouvrable with FIFI-1 and antipollution and recoil tanks, open stern with stern roller with total free deck area like a mini supply which can be used as multirole vessel for other works like: cargo, pipes, containers, transportation from shore to terminals
2 Fire pump Kvarner Type CV-12 BA driven by P.T.O. of
ME capacity: 1x1200 mc/h, 1x1500 mc/h
2 Monitors: 1 Water/Foam type EF 212 double branch –
1 Water type EF-211 single branch
1 Foam pump
1 Foam tank capacity 12 cm.
Self protection 300 mc/hr
Remote control for monitors in wheel - house
Anti pollution equipment:
Dispersant equipment:2x 6m long booms with 5
sprinklers on each.
1x sea water pump capacity 10mc/h head 5m
1x dispersant pump capacity up to 2mc/h
Recoil tanks capacity 2x18mc
GMDSS Area A1 + A2 + A3
Main Engine(s) (make,type) 2 x MaK type8M 20 AK
Main Propulsion System Azimuthal Thruster
Auxiliary engine(s) 2 X 140 KW , AC 50 cycles
Speed maximum 13.5 knots
1x harbour set 50 KVA- 380V AC 50 cycles
1x shaft generator 140 KVA- 380 V AC 50 cycles.
Class Society and Notation RINA c Tug FIFI Unrest. Navig.
|Charter Information:||for Charter|
